• Country
• Sweden

• Manufacturer / Brand
• Philips, Svenska AB, Stockholm

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92910

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EBC81 EM84 EL86

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

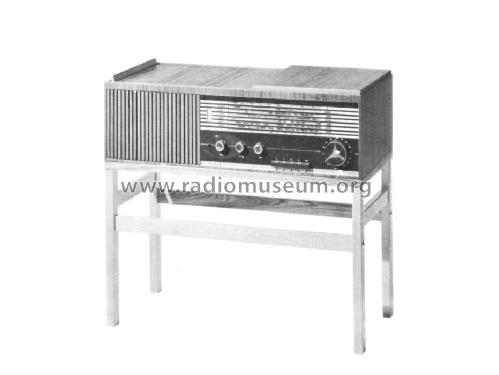

• Model: Cathrin H4S53A - Philips, Svenska AB, Stockholm

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 638 x 200 x 320 mm / 25.1 x 7.9 x 12.6 inch

• Notes
• Diodes: 2× OA79, BA102.

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jörgen Svensson. See "Data change" for further contributors.
