Compact Disc Player CD100 /30; Philips Belgium (ID = 1283803) R-Player
Philips Belgium: Compact Disc Player CD100 /30 [R-Player] ID = 1283803 933x600

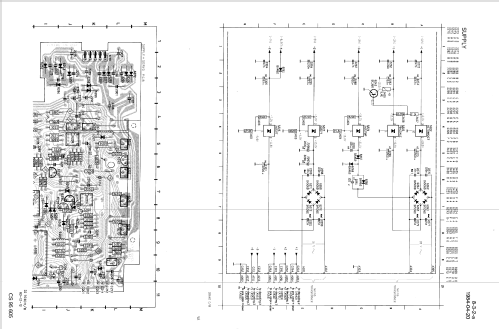

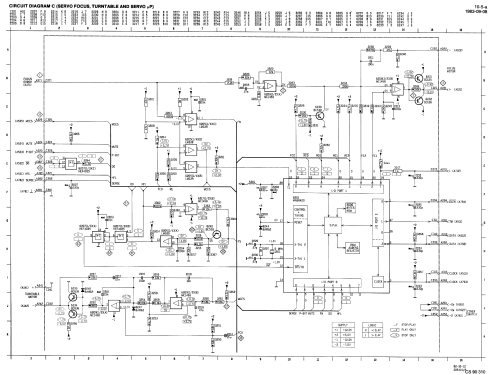

Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player CD100 /30, Philips Belgium (Belgien):

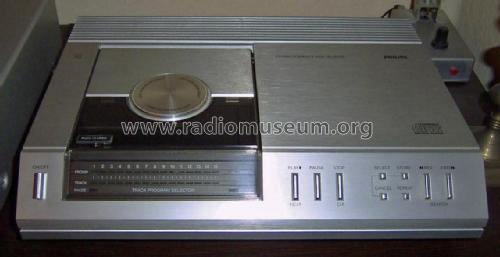

A Philips CD100/30 CD player. This is a German market player originally for 220 volts AC. It has been overhauled and has had many of its electrolytic capacitors replaced, solder joints in its muting circuit resoldered and the mains lead moved onto the 240 volt tapping of its mains transfomer for use in the UK. It now works perfectly. It was built in Belgium in 1983.

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1983/1984 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Details CD-Player, -Writer, MD, MOD (audio)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player CD100 /30 - Philips Belgium Belgien
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 320 x 75 x 270 mm / 12.6 x 3 x 10.6 inch
Notes

Later mass production version of Philips's first CD player.

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Price in first year of sale 1'998.00 DM
Collectors' prices
Mentioned in Audiotest in Hobby 6/83

Model page created by Peter Böhm. See "Data change" for further contributors.
