Continental 56 EL3556

Continental 56 EL3556; Philips Australia (ID = 2356840) R-Player
Use red slider bar for more.
Continental 56 EL3556; Philips Australia (ID = 2356840) R-Player
Philips Australia: Continental 56 EL3556 [R-Player] ID = 2356840 1400x1876
Select picture or schematic to display from thumbnails on the right and click for download.
For model Continental 56 EL3556, Philips Australia:

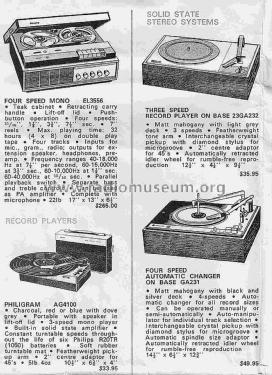

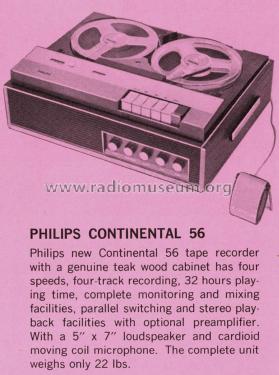

From brochure.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1965–1968 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: ECC83 EL95 EL95 EM87
Semiconductors (the count is only for transistors) 6: AC172 AC172 AC172 AC126 AC126 AC125 OA70
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Continental 56 EL3556 - Philips Australia
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 17 x 6.5 x 13 inch / 432 x 165 x 330 mm
Notes

Export model & marketed in Australia as Continental 56.

4-speed, 4-track reel-to-reel tape recorder.

Tape speed 15/16", 1⅞", 3¾" & 7½" per second. Max reel diameter 7".

Teak wood cabinet.

Net weight (2.2 lb = 1 kg) 22 lb 0 oz (22 lb) / 9.988 kg
Price in first year of sale 304.50 AUS $

Model page created by Martin Kent. See "Data change" for further contributors.
