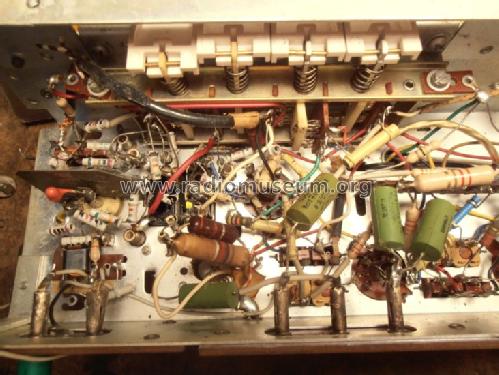

David 3 ; Philips Italy; (ID = 1457677) Radio David 3 ; Philips Italy; (ID = 1457679) Radio
David 3 ; Philips Italy; (ID = 1457681) Radio David 3 ; Philips Italy; (ID = 1457682) Radio
David 3 ; Philips Italy; (ID = 1457683) Radio David 3 ; Philips Italy; (ID = 1457685) Radio
Use red slider bar for more.
David 3 ; Philips Italy; (ID = 1031127) Radio
Philips Italy;: David 3 [Radio] ID = 1031127 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model David 3, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UCH81 UF89 UABC80 DM71 UL84 UY85
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out
from Radiomuseum.org Model: David 3 - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 370 x 210 x 170 mm / 14.6 x 8.3 x 6.7 inch
Notes

Simile al modello Philips David 2 ma ha ulteriori ricezione audio TV. Altoparlante tipo AD2400 W ( 3ohm 3W ).

Similar to model David 2 but with additional TV sound reception.

AD2400W type loudspeaker ( 3ohm 3W ).

Model page created by Pasquale Baiocato. See "Data change" for further contributors.
