Riff V471

Riff V471; Dux Radio AB; (ID = 577012) Radio
Riff V471; Dux Radio AB; (ID = 577013) Radio
Riff V471; Dux Radio AB; (ID = 198760) Radio
Use red slider bar for more.
Riff V471; Dux Radio AB; (ID = 198760) Radio

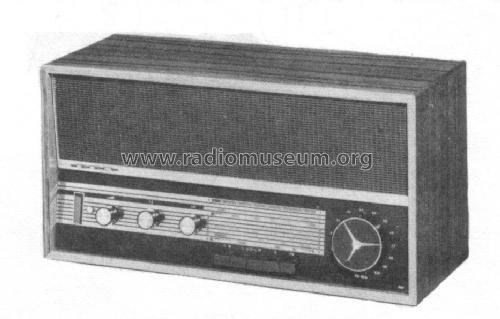

Dux Radio AB;: Riff V471 [Radio] ID = 198760 933x597
Select picture or schematic to display from thumbnails on the right and click for download.
For model Riff V471, Dux Radio AB; Stockholm
Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1966 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EBC81 EM84 EL86
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Model: Riff V471 - Dux Radio AB; Stockholm
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Diodes: 2× OA79, BA102.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jörgen Svensson. See "Data change" for further contributors.
