Ballad V1440

Ballad V1440; Dux Radio AB; (ID = 1622089) Radio

Ballad V1440; Dux Radio AB; (ID = 1622092) Radio
Ballad V1440; Dux Radio AB; (ID = 281017) Radio Ballad V1440; Dux Radio AB; (ID = 281018) Radio
Ballad V1440; Dux Radio AB; (ID = 281019) Radio Ballad V1440; Dux Radio AB; (ID = 281020) Radio
Ballad V1440; Dux Radio AB; (ID = 1622088) Radio
Use red slider bar for more.
Ballad V1440; Dux Radio AB; (ID = 281017) Radio
Dux Radio AB;: Ballad V1440 [Radio] ID = 281017 711x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ballad V1440, Dux Radio AB; Stockholm

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EBC81 EM84 EL86
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Ballad V1440 - Dux Radio AB; Stockholm
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 750 x 630 x 310 mm / 29.5 x 24.8 x 12.2 inch
Notes Radio-Chassis like Philips G4F; Phono-Chassis = Philips.
Price in first year of sale 745.00 SEK
Source of data - - Data from my own collection

Model page created by Bo Samuelsson. See "Data change" for further contributors.



All listed radios etc. from Dux Radio AB; Stockholm
Here you find 166 models, 148 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Dux Radio AB;: Ballad V1440
Threads: 1 | Posts: 1
Hits: 2861     Replies: 0
philips: V1440 (V 1440); Dux
Bo Samuelsson
23.Dec.06
  1

We bought this nice little radio gramophone 12 - 15 years ago for only £10 at a second hand shop, to play our old 78 rev/min records (the heavy pickup of the old portable gramophone was eating our records!). It was made by Dux, a Swedish subsidiary of Philips, and the designation is V1440.

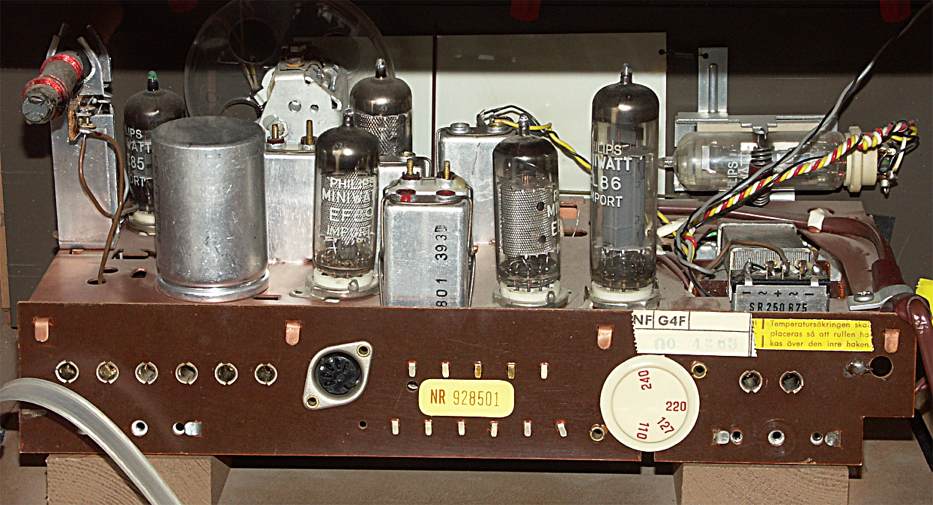

The chassis is Philips copper red type G4F. The radio covers LW 1160 - 2000 m (258 - 150 kHz), MW 187 - 545 m (1610 - 550 kHz) and SW 24 - 52 m (12,4 - 5,8 MHz) as well as VHF (FM) 87,5 - 100 MHz. It has 6 valves, ECC85, ECH81, EF89, EBC81, EL86 and a magic eye EM84.

The record player is of course a Philips, it has four speeds, 16, 33, 45 and 78 rev/min.

My Dux was probably made at NEFA in Norrköping. The corresponding Philips model appears in a broschure 1963/64 under the name Siw H4S33A.
