EG0417

EG0417; Philips Belgium (ID = 2273010) Speaker-P EG0417; Philips Belgium (ID = 2273011) Speaker-P
EG0417; Philips Belgium (ID = 2117352) Speaker-P EG0417; Philips Belgium (ID = 2117353) Speaker-P
EG0417; Philips Belgium (ID = 2117354) Speaker-P EG0417; Philips Belgium (ID = 2117355) Speaker-P
EG0417; Philips Belgium (ID = 2117356) Speaker-P EG0417; Philips Belgium (ID = 2117357) Speaker-P
EG0417; Philips Belgium (ID = 1970318) Speaker-P EG0417; Philips Belgium (ID = 1970319) Speaker-P
Use red slider bar for more.
EG0417; Philips Belgium (ID = 2273010) Speaker-P
Philips Belgium: EG0417 [Speaker-P] ID = 2273010 1399x1392
Select picture or schematic to display from thumbnails on the right and click for download.

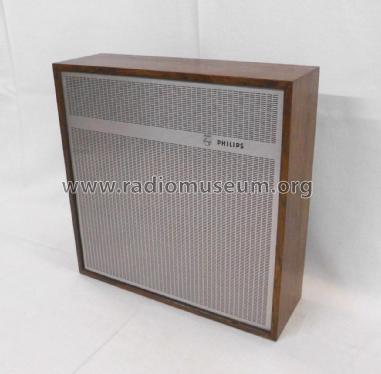

For model EG0417, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1968–1973 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out 10 W (20 W max.)
from Radiomuseum.org Model: EG0417 - Philips Belgium Belgien
Material Wooden case
Dimensions (WHD) 240 x 240 x 75 mm / 9.4 x 9.4 x 3 inch
Notes

Philips EG0417

2-Weg-HiFi-Lautsprecherbox, geschlossen; Tieftonlautsprecher 129mm (AD5060/W4), Konus-Hochtonlautsprecher 58mm (frühe Boxen AD2070/T8, später AD2071/T8). Nennbelastbarkeit 10 Watt, 20 Watt Grenzbelastbarkeit, 8 Ω.

risposta in frequenza : 30 Hz - 18 kHz

Diese Box wurde in Verbindung mit den Philips Plattenspieler-Verstärkerkombinationen 22GF417  und   22GF808 ausgeliefert.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Mentioned in -- Original prospect or advert (Philips Kataloge 1968 bis 1973)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
