EL3527

EL3527; Philips Electrical, (ID = 586043) R-Player

EL3527; Philips Electrical, (ID = 586044) R-Player

EL3527; Philips Electrical, (ID = 586045) R-Player
EL3527; Philips Electrical, (ID = 767158) R-Player EL3527; Philips Electrical, (ID = 767159) R-Player
EL3527; Philips Electrical, (ID = 770285) R-Player EL3527; Philips Electrical, (ID = 1013283) R-Player
Use red slider bar for more.

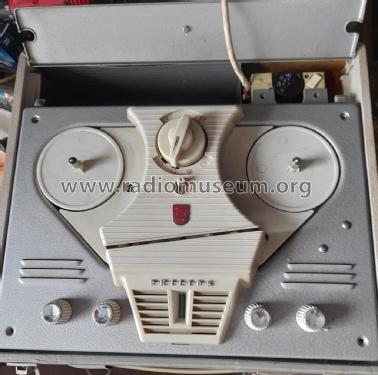

EL3527; Philips Electrical, (ID = 767158) R-Player
Philips Electrical,: EL3527 [R-Player] ID = 767158 745x590
Select picture or schematic to display from thumbnails on the right and click for download.
For model EL3527, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1959 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: EF86 ECC83 ECL82 DM70
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: EL3527 - Philips Electrical, Lamps,
Shape Tablemodel, with any shape - general.
Notes Portable tape recorder,single speed 3 3/4 in/sec. Spool size 5 inch.
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
