EL3536A /22B
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1959/1960
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 87241
-
- Brand: Deutsche Philips-Ges.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- Main principle
- Audio-Amplification
- Details
- Tape Recorder

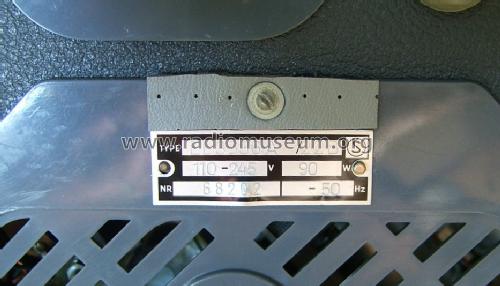

- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 245 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 8 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: EL3536A /22B - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 480 x 290 x 400 mm / 18.9 x 11.4 x 15.7 inch
- Notes
-
Stereo-Tonbandgerät.
Das Philips Modell EL3536 entspricht technisch dem Philips Modell RK80 EL3536.
En France EL3536 est commercialisé sous la marque Radiola RA9536.- Leistungsaufnahme: ca. 90 W
- Asynchronmotor mit Reibradgetriebe
- Bandgeschwindigkeiten: 4,75; 9,5; 19 cm/sec.
- Net weight (2.2 lb = 1 kg)
- 18 kg / 39 lb 10.4 oz (39.648 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
