• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1958

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 311966

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EBC90 EL84 EZ80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Electrófono 91-AG-46E Ch=AG-1014 - Philips Ibérica, COPRESA,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 376 x 207 x 331 mm / 14.8 x 8.1 x 13 inch

• Notes

• Philips Ibérica; Maleta tocadiscos electrófono automático 91-AG-46E

  • Plato automático tipo Philips AG-1014 de cuatro velocidades (16, 33, 45 y 78 r.p.m.)
  • Equipado con cabeza reproductora tipo AG 3016 - Cristal
  • Altavoz tipo ZB 9768-X

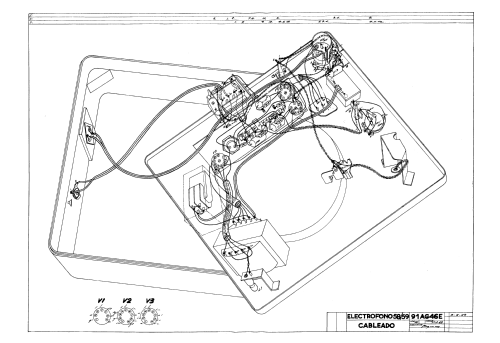

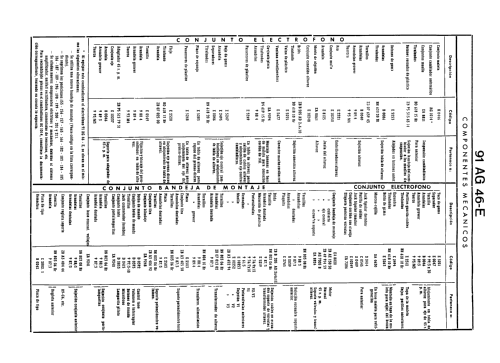

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
