• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 302622

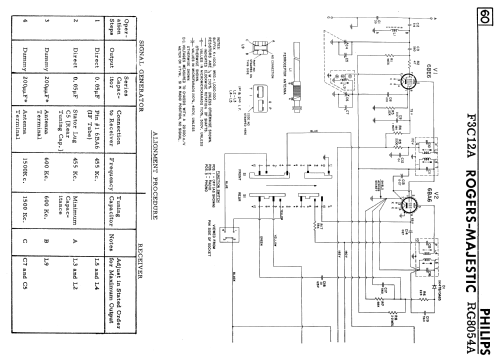

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BE6 6BA6 12AX7 or ECC83 6BM8 or ECL82 6BM8 or ECL82 6CA4 or EZ81

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 4 Loudspeakers

• from Radiomuseum.org
• Model: F3C12A - Philips Canada

• Notes

• The Philips model F3C12A is a 6-tube AM radio with built in stereo record changer. Has two P.M speakers for each channel. Same circuit as the Rogers-Majestic model RG8054A.

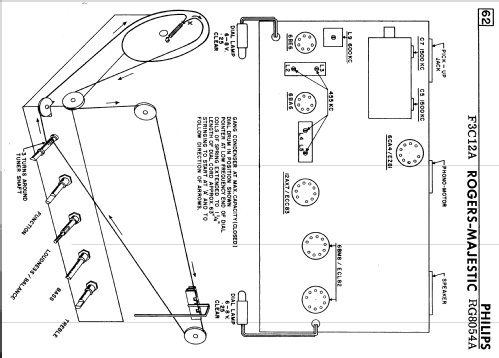

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1960-61 Supplement 52)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
