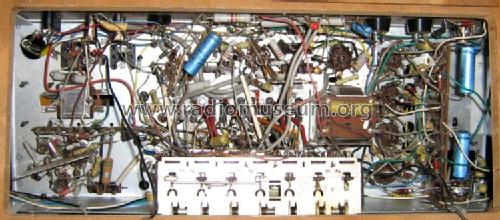

F5SF23A; Philips Finland - (ID = 806068) Radio F5SF23A; Philips Finland - (ID = 806070) Radio
F5SF23A; Philips Finland - (ID = 806072) Radio F5SF23A; Philips Finland - (ID = 806073) Radio

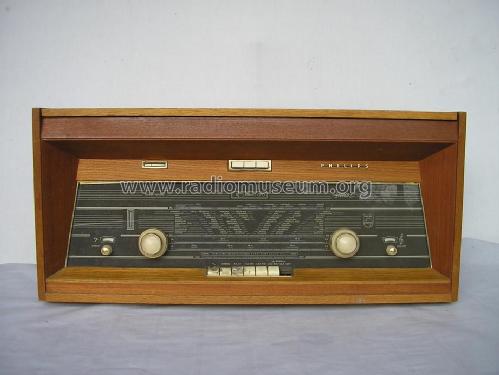

F5SF23A; Philips Finland - (ID = 1642295) Radio
Use red slider bar for more.
F5SF23A; Philips Finland - (ID = 806064) Radio
Philips Finland -: F5SF23A [Radio] ID = 806064 830x725
Select picture or schematic to display from thumbnails on the right and click for download.
For model F5SF23A, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EBF89 EABC80 EM84 ECL82 ECL82 ECL82 ECL82
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220; 245 Volt
Loudspeaker 2 Loudspeakers / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: F5SF23A - Philips Finland - see also
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 700 x 330 x 328 mm / 27.6 x 13 x 12.9 inch
Notes "Real Stereo" transformerles output stages, speakers AD3800AM (800 Ohm). Record player AG2056SF/40.
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Source of data - - Data from my own collection

Model page created by Jouko Laukkanen. See "Data change" for further contributors.
