F9X38A Wechsler

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30099

• Picture

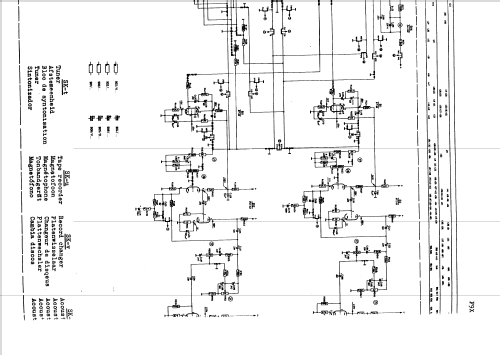

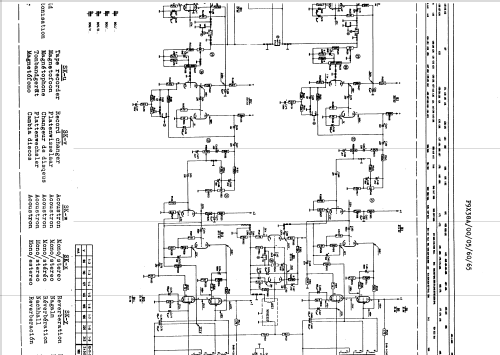

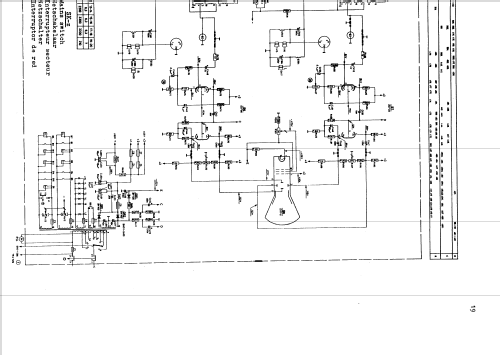

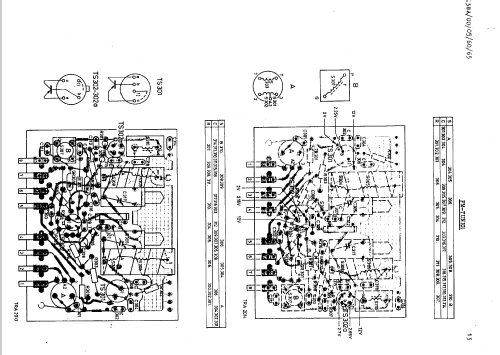

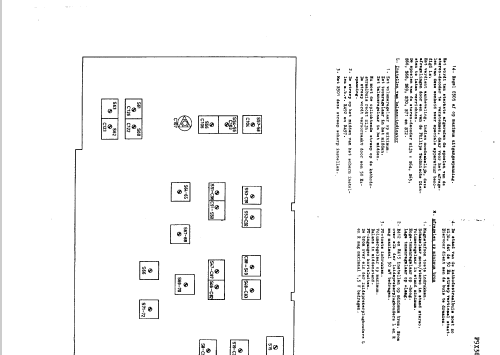

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• EF86 EF86 ECC83 ECC83 ECC83 ECC83 ECC83 EL86 EL86 EL86 EL86 ECF80 ECF80 DG7-5

• Number of Transistors
• 24

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Details
• Changer + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 90-245 Volt

• Loudspeaker
• 7 or more Loudspeakers

• Power out
• 30 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: F9X38A [Wechsler] - Philips; Eindhoven tubes

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1700 x 860 x 466 mm / 66.9 x 33.9 x 18.3 inch

• Notes

• mit Oszi-Röhre als Balance-Anzeige; 4 KW Bereiche, Wellenbereich-Schalter mit Motor; Tonband: ELZ3534A, Pl. Wechsler: AG1030W siehe auch Variante mit Pl.Spieler: AG2030W.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
