FF641A

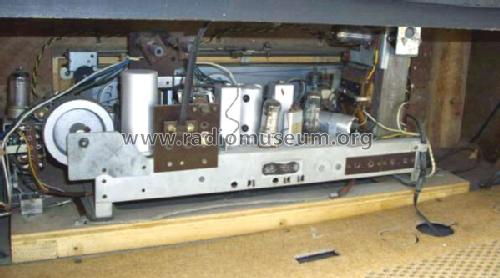

FF641A; Philips France; (ID = 769242) Radio FF641A; Philips France; (ID = 769243) Radio
FF641A; Philips France; (ID = 769244) Radio FF641A; Philips France; (ID = 1310600) Radio
Use red slider bar for more.
FF641A; Philips France; (ID = 769242) Radio
Philips France;: FF641A [Radio] ID = 769242 577x468
Select picture or schematic to display from thumbnails on the right and click for download.
For model FF641A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EC92 EC92 EF85 ECH81 DM71 EF41 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: FF641A - Philips France; Paris
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 920 x 780 x 386 mm / 36.2 x 30.7 x 15.2 inch
Notes Chassis basiert auf Model BF633A Plattenwechsler AG1003 o. AG3012 o. AG3025
Price in first year of sale 138'050.00 FRF

Model page created by Karsten Hauger. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 544 models, 482 with images and 297 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
