Format 20 Automatic A20T684 /06 Ch= F6

Format 20 Automatic A20T684 /06 Ch= F6; Philips - Österreich (ID = 291608) Television

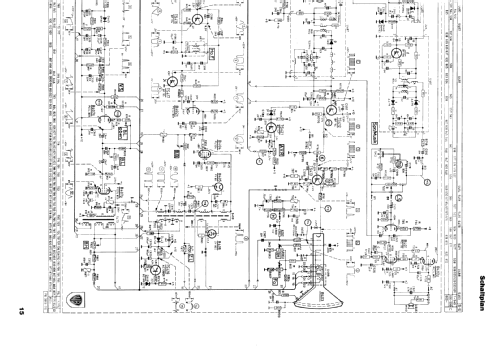

Format 20 Automatic A20T684 /06 Ch= F6; Philips - Österreich (ID = 291609) Television

Format 20 Automatic A20T684 /06 Ch= F6; Philips - Österreich (ID = 1948619) Television
Format 20 Automatic A20T684 /06 Ch= F6; Philips - Österreich (ID = 291607) Television Format 20 Automatic A20T684 /06 Ch= F6; Philips - Österreich (ID = 1511787) Television
Use red slider bar for more.
Format 20 Automatic A20T684 /06 Ch= F6; Philips - Österreich (ID = 291607) Television
Philips - Österreich: Format 20 Automatic A20T684 /06 Ch= F6 [Television] ID = 291607 800x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model Format 20 Automatic A20T684 /06 Ch= F6, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1969 Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: PCL86 PCL805 PCL805 PL504 PY88 DY802 A50-120W
Semiconductors (the count is only for transistors) 16: N161OM
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Format 20 Automatic A20T684 /06 Ch= F6 - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 560 x 435 x 235 mm / 22 x 17.1 x 9.3 inch
Notes

Empfangsbereich VHF und UHF.

Parallelgerät zum Horny W51T486.

Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
