- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30104

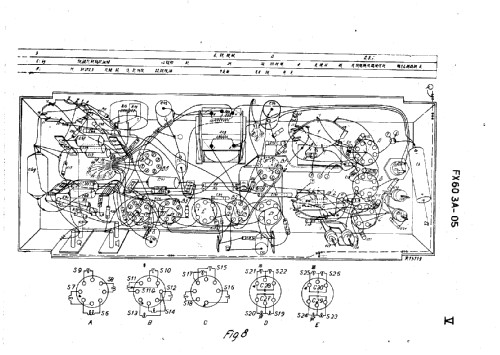

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: FX603A /05 - Philips; Eindhoven tubes
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 800 x 685 x 400 mm / 31.5 x 27 x 15.7 inch
- Notes
- Pl.Wechsler : 2508
- Net weight (2.2 lb = 1 kg)
- 28.5 kg / 62 lb 12.4 oz (62.775 lb)
- Price in first year of sale
- 750.00 Hfl
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
