FX804A

FX804A; Philips; Eindhoven (ID = 43012) Radio

FX804A; Philips; Eindhoven (ID = 43013) Radio

FX804A; Philips; Eindhoven (ID = 43014) Radio

FX804A; Philips; Eindhoven (ID = 43015) Radio

FX804A; Philips; Eindhoven (ID = 43016) Radio

FX804A; Philips; Eindhoven (ID = 43017) Radio

FX804A; Philips; Eindhoven (ID = 43018) Radio

FX804A; Philips; Eindhoven (ID = 43019) Radio

FX804A; Philips; Eindhoven (ID = 43020) Radio

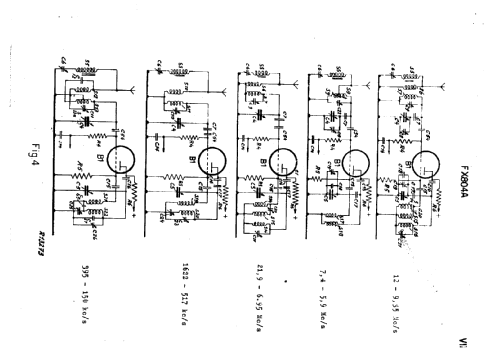

FX804A; Philips; Eindhoven (ID = 43021) Radio
FX804A; Philips; Eindhoven (ID = 153327) Radio FX804A; Philips; Eindhoven (ID = 153329) Radio

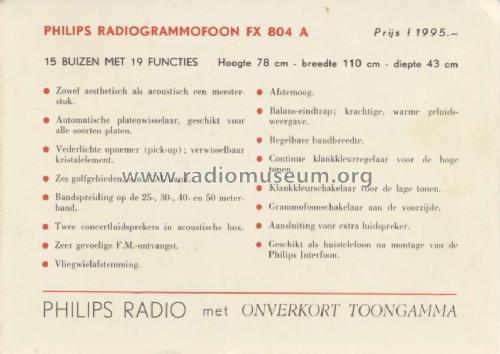

FX804A; Philips; Eindhoven (ID = 153328) Radio FX804A; Philips; Eindhoven (ID = 423685) Radio

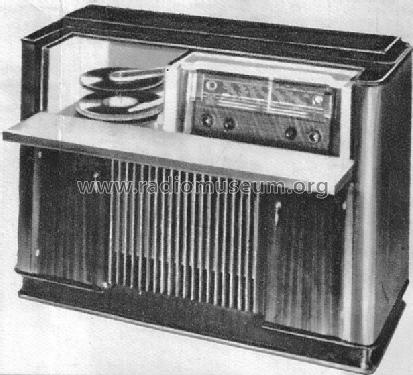

FX804A; Philips; Eindhoven (ID = 98684) Radio FX804A; Philips; Eindhoven (ID = 1484108) Radio
Use red slider bar for more.
FX804A; Philips; Eindhoven (ID = 153327) Radio
Philips; Eindhoven: FX804A [Radio] ID = 153327 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model FX804A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 15: ECH42 EAF42 EF40 EAF42 EF42 EF42 EF42 EF42 EB41 EB41 EL41 EL41 AZ41 AZ41 EM34
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10,7 kHz
Wave bands Ready for FM, has Broadcast, Long Wave, several Short Wave.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker 2 Loudspeakers / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: FX804A - Philips; Eindhoven tubes
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1107 x 800 x 440 mm / 43.6 x 31.5 x 17.3 inch
Notes With 3-speed record changer 2508. 3 SW bands. Chassis like BX700A.
Net weight (2.2 lb = 1 kg) 62 kg / 136 lb 9 oz (136.564 lb)
Price in first year of sale 2,650.00 Hfl
Collectors' prices
Source of data Technisch- Commercieel - Radio Vademecum Staleman

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4878 models, 4091 with images and 3258 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: FX804A
Threads: 1 | Posts: 3
Hits: 2245     Replies: 2
philips: FX804A;
Erik Lindblom
08.Nov.05
  1 Hello - message from Sweden!

My Philips FX804a have FM (UKW). Probably it's from the year 1953. It's a wonderful amazing piece of old Philips history!

Erik Lindblom, Hultsfred, Sweden

erik.lindblom[A*T]gmail.com
Omer Suleimanagich
09.Nov.05
  2 I attempted to upload the service manual to you but the file is more than 200KB.

You will be receiving the file via personal email.

Omer

P.S. Please thank the site owner, http://radiotechniek.cjb.net/, for this contribution
Erik Lindblom
12.Nov.05
  3 Thanks Omer!

This Philips radiogram i absolutly wonderful and amazing!
It´s so so beutiful!

Thanks again!

/Erik from Sweden
