HCH411A

HCH411A; Philips - Schweiz (ID = 154368) Radio HCH411A; Philips - Schweiz (ID = 154367) Radio
HCH411A; Philips - Schweiz (ID = 154369) Radio
Use red slider bar for more.

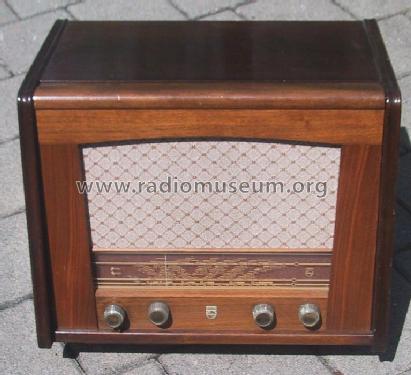

HCH411A; Philips - Schweiz (ID = 154368) Radio
Philips - Schweiz: HCH411A [Radio] ID = 154368 768x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model HCH411A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1951–1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: HCH411A - Philips - Schweiz
Material Wooden case
Dimensions (WHD) 460 x 360 x 320 mm / 18.1 x 14.2 x 12.6 inch
Notes ZF kann abweichen
Price in first year of sale 639.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
