HX348A /19

HX348A /19; Philips Belgium (ID = 2562866) Radio HX348A /19; Philips Belgium (ID = 2562864) Radio
HX348A /19; Philips Belgium (ID = 2562865) Radio HX348A /19; Philips Belgium (ID = 2562867) Radio
Use red slider bar for more.

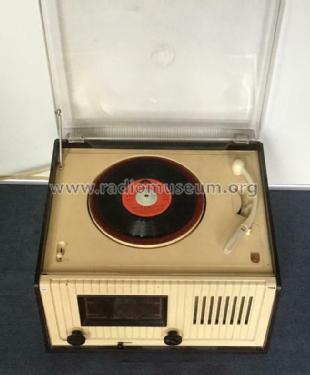

HX348A /19; Philips Belgium (ID = 2562866) Radio
Philips Belgium: HX348A /19 [Radio] ID = 2562866 651x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model HX348A /19, Philips Belgium (Belgien):
Picture from auction site Marktplaats (seller: Anne).

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY42
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: HX348A /19 - Philips Belgium Belgien
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 380 x 200 x 355 mm / 15 x 7.9 x 14 inch
Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)

Model page created by Gidi Verheijen. See "Data change" for further contributors.
