Journal-Automatic A23T644 /00 /03 /08 Ch= F4-KÄ (F4-N)

Journal-Automatic A23T644 /00 /03 /08 Ch= F4-KÄ ; Philips - Österreich (ID = 292026) Television

Journal-Automatic A23T644 /00 /03 /08 Ch= F4-KÄ ; Philips - Österreich (ID = 292027) Television

Journal-Automatic A23T644 /00 /03 /08 Ch= F4-KÄ ; Philips - Österreich (ID = 1951589) Television
Journal-Automatic A23T644 /00 /03 /08 Ch= F4-KÄ ; Philips - Österreich (ID = 153944) Television
Use red slider bar for more.
Journal-Automatic A23T644 /00 /03 /08 Ch= F4-KÄ ; Philips - Österreich (ID = 153944) Television
Philips - Österreich: Journal-Automatic A23T644 /00 /03 /08 Ch= F4-KÄ [Television] ID = 153944 752x560

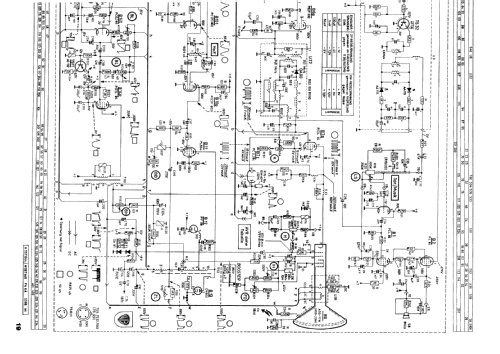

Select picture or schematic to display from thumbnails on the right and click for download.
For model Journal-Automatic A23T644 /00 /03 /08 Ch= F4-KÄ (F4-N), Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1968 Category: Television Receiver (TV) or Monitor
Valves / Tubes 12: EF183 PCF200 PCL84 PCL86 PL84 PCH200 PCF802 PCL805 PL504 PY88 DY802 A59-11W
Semiconductors (the count is only for transistors) 8: AF239 AF239 AF139 BF173 AF126 BF115 AC125 AC132
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Journal-Automatic A23T644 /00 /03 /08 Ch= F4-KÄ - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 692 x 488 x 307 mm / 27.2 x 19.2 x 12.1 inch
Notes

Fernsehband VHF (I+III), UHF (IV/V).
59-cm-Rechteckbildröhre.

3 Ausführungen:
/00 = dunkel-hochglänzend;
/03 = Seidenglanz;
/08 = weiß Schleiflack.

Parallelgerät zum Horny W59T446.

Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
