Koncertszekrény 31850 / 1850 Philips Ultra Szuper A

Koncertszekrény 31850 / 1850 Philips Ultra Szuper; Philips; Budapest (ID = 1615821) Radio Koncertszekrény 31850 / 1850 Philips Ultra Szuper; Philips; Budapest (ID = 1615822) Radio
Koncertszekrény 31850 / 1850 Philips Ultra Szuper; Philips; Budapest (ID = 1616219) Radio Koncertszekrény 31850 / 1850 Philips Ultra Szuper; Philips; Budapest (ID = 1616220) Radio
Use red slider bar for more.

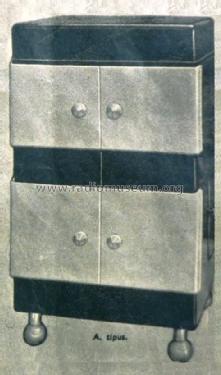

Koncertszekrény 31850 / 1850 Philips Ultra Szuper; Philips; Budapest (ID = 1615821) Radio
Philips; Budapest: Koncertszekrény 31850 / 1850 Philips Ultra Szuper [Radio] ID = 1615821 492x832
Select picture or schematic to display from thumbnails on the right and click for download.
For model Koncertszekrény 31850 / 1850 Philips Ultra Szuper A, Philips; Budapest:
Thanks for Mr.Sik Béla, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: AF3 AK2 AF3 AB2 AF7 AL4 AZ1
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Koncertszekrény 31850 / 1850 Philips Ultra Szuper [A] - Philips; Budapest
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 620 x 1090 x 410 mm / 24.4 x 42.9 x 16.1 inch
Price in first year of sale 820.00 Pengő

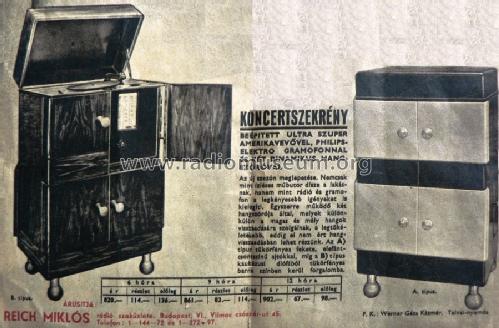

Literature/Schematics (2) Reich Rádió Katalógus, BP. 1937

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Philips; Budapest
Here you find 213 models, 209 with images and 115 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
