Konzertmeister kombi P 814 22RH814/22Z
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 83641
Casse 22RH412/11Z

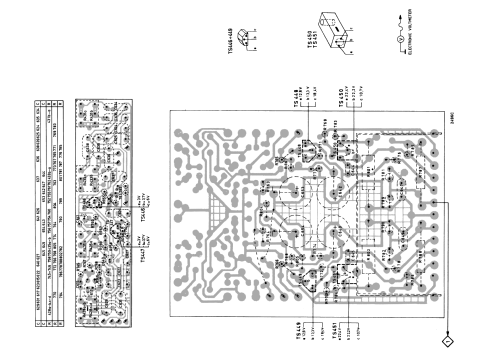

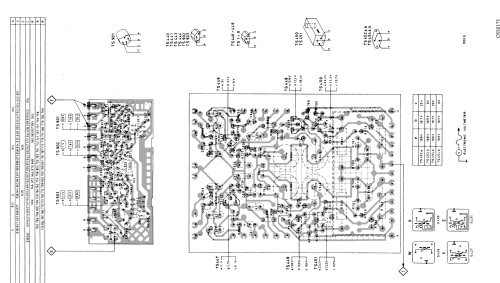

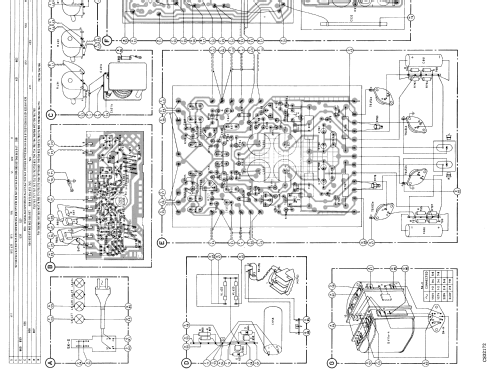

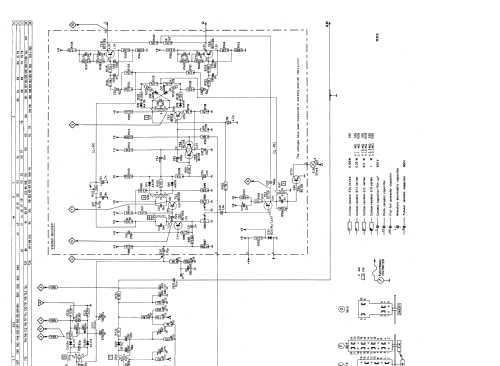

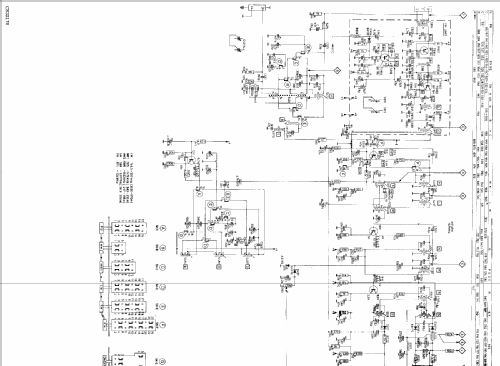

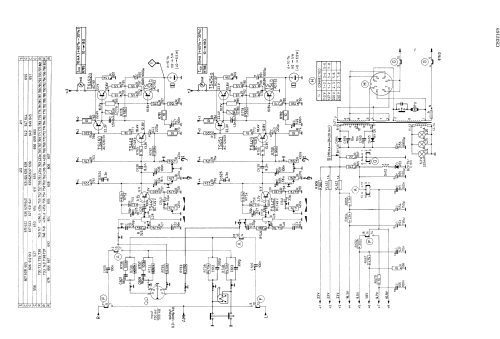

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Konzertmeister kombi P 814 22RH814/22Z - Philips - Österreich
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Eingebauter Plattenspieler 22GC060, mit 2 externen LS-Boxen 22RH411/01Z
- Source of data
- -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
