• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1954/1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 19917

• • Brand: Deutsche Philips-Ges.

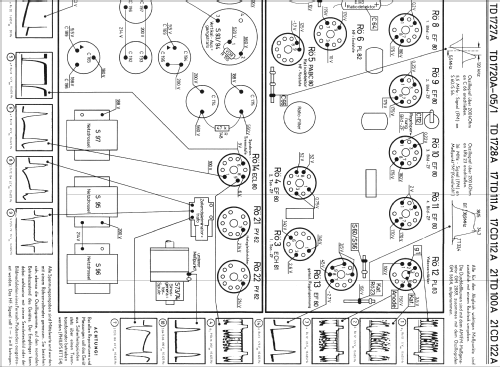

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 ECL80 EF80 PL83 ECH81 EF80 PABC80 PL82 ECL80 ECL80 PL82 PL81 PY81 EY51 PY82 PY82 MW53-20

• Number of Transistors

• Semiconductors
• OA60 OA61 OA61

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Krefeld 5322 21CD122A [alt] - Philips Radios - Deutschland

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 680 x 1070 x 560 mm / 26.8 x 42.1 x 22 inch

• Notes

• 10 VHF-Kanäle + 2 Reserve. Ab 1955 vermutlich OA70 statt OA60 und OA71 statt OA61.

• Net weight (2.2 lb = 1 kg)
• 65 kg / 143 lb 2.7 oz (143.172 lb)

• Price in first year of sale
• 1,675.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

• Literature/Schematics (1)
• -- Original-techn. papers.
