L1X90T /00R /00X; Philips; Eindhoven (ID = 341932) Radio

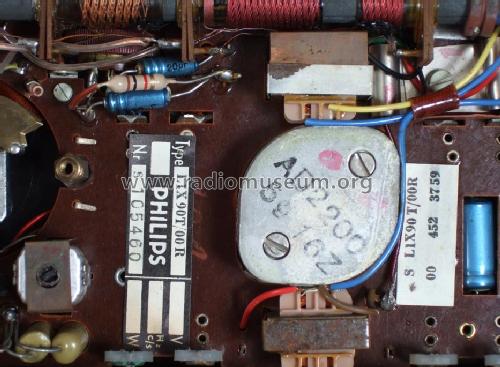

Philips; Eindhoven: L1X90T /00R /00X [Radio] ID = 341932 933x686
Select picture or schematic to display from thumbnails on the right and click for download.
For model L1X90T /00R /00X, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OA95 OC45 OC45 OA95 OC71 OC71 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: L1X90T /00R /00X - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 88 x 34 mm / 6.3 x 3.5 x 1.3 inch
Notes

Wavebands:
LW = 1200 - 1950 m
MW 185 - 570 m

Speaker Z = 3 ohms.

L1X90T shares the chassis (L1B) with models Dux SA6010T and Conserton MD6510T. It is similar to L1F95T.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
