Mikro SA6010T

Mikro SA6010T; Dux Radio AB; (ID = 1603509) Radio
Mikro SA6010T; Dux Radio AB; (ID = 1603160) Radio
Use red slider bar for more.
Mikro SA6010T; Dux Radio AB; (ID = 1603160) Radio
Dux Radio AB;: Mikro SA6010T [Radio] ID = 1603160 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mikro SA6010T, Dux Radio AB; Stockholm:

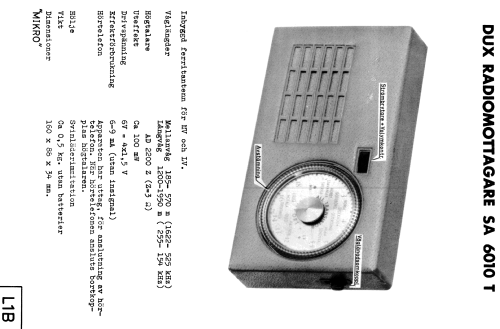

Aus den Hersteller-Unterlagen

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA95 OA95
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Mikro SA6010T - Dux Radio AB; Stockholm
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 88 x 34 mm / 6.3 x 3.5 x 1.3 inch
Notes

Wavebands:
LW = 1200 - 1950 m
MW 185 - 570 m

Speaker Z = 3 ohms.

SA6010T shares the chassis (L1B) with models Conserton MD6510T and Philips L1X90T.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
