L3AL90-T

L3AL90-T; Philips Argentina, (ID = 705071) Radio
L3AL90-T; Philips Argentina, (ID = 705069) Radio
Use red slider bar for more.

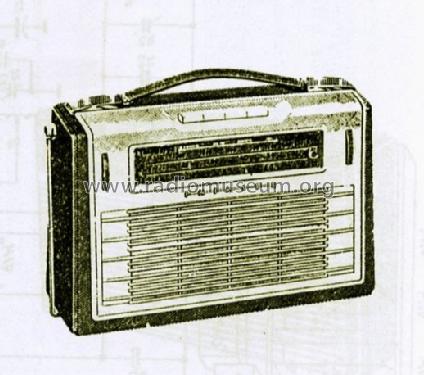

L3AL90-T; Philips Argentina, (ID = 705069) Radio
Philips Argentina,: L3AL90-T [Radio] ID = 705069 519x458
Select picture or schematic to display from thumbnails on the right and click for download.
For model L3AL90-T, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires:
Prospekt

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF115 OC44 OC44 OC71 OC71 OC72 OC72 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: L3AL90-T - Philips Argentina, FAPESA,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Philips Argentina L3AL90-T;
Onda media 517 a 1622 kHz
Onda corta 5,9 a 12,1 MHz.
Literature/Schematics (1) -- Schematic (Manual de servicio Philips 1966)

Model page created by Jose Vigil. See "Data change" for further contributors.
