L3X80T

L3X80T; Philips Belgium (ID = 2416959) Radio L3X80T; Philips Belgium (ID = 1095486) Radio
L3X80T; Philips Belgium (ID = 1095487) Radio L3X80T; Philips Belgium (ID = 1095488) Radio
L3X80T; Philips Belgium (ID = 1488498) Radio L3X80T; Philips Belgium (ID = 1488499) Radio
L3X80T; Philips Belgium (ID = 1488500) Radio L3X80T; Philips Belgium (ID = 1768662) Radio
L3X80T; Philips Belgium (ID = 1768663) Radio L3X80T; Philips Belgium (ID = 2180561) Radio
Use red slider bar for more.

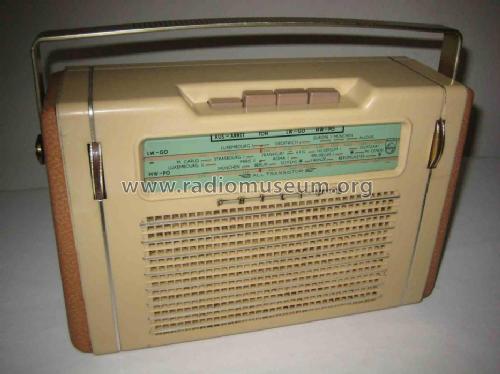

L3X80T; Philips Belgium (ID = 2416959) Radio
Philips Belgium: L3X80T [Radio] ID = 2416959 1400x1026
Select picture or schematic to display from thumbnails on the right and click for download.
For model L3X80T, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N219 or. OC44 2N218 or. OC45 2N218 or. OC45 OC71 OC71 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: L3X80T - Philips Belgium Belgien
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 175 x 92 mm / 10.4 x 6.9 x 3.6 inch
Notes

Gerät mit Skala für die Schweiz. Es gab auch eine Ausführung mit Skala Benelux

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Mentioned in -- Original-techn. papers.

Model page created by Gidi Verheijen. See "Data change" for further contributors.
