L3X91T /00E /70E

L3X91T /00E /70E; Philips; Eindhoven (ID = 1595834) Radio

L3X91T /00E /70E; Philips; Eindhoven (ID = 2299299) Radio
L3X91T /00E /70E; Philips; Eindhoven (ID = 1595833) Radio L3X91T /00E /70E; Philips; Eindhoven (ID = 1915270) Radio
L3X91T /00E /70E; Philips; Eindhoven (ID = 1915273) Radio L3X91T /00E /70E; Philips; Eindhoven (ID = 1915275) Radio
L3X91T /00E /70E; Philips; Eindhoven (ID = 1915277) Radio
Use red slider bar for more.
L3X91T /00E /70E; Philips; Eindhoven (ID = 1595833) Radio
Philips; Eindhoven: L3X91T /00E /70E [Radio] ID = 1595833 933x729
Select picture or schematic to display from thumbnails on the right and click for download.
For model L3X91T /00E /70E, Philips; Eindhoven (tubes international!); Miniwatt:

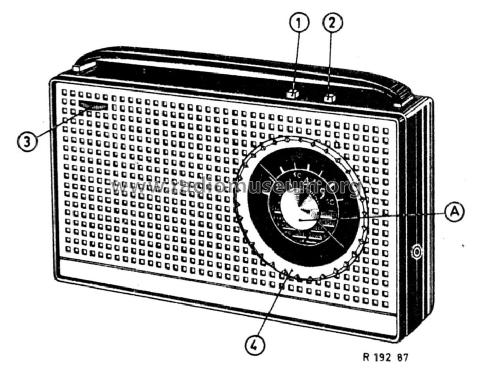

Picture from original technical papers.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1959–1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC74 OC74 OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: L3X91T /00E /70E - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 238 x 135 x 60 mm / 9.4 x 5.3 x 2.4 inch

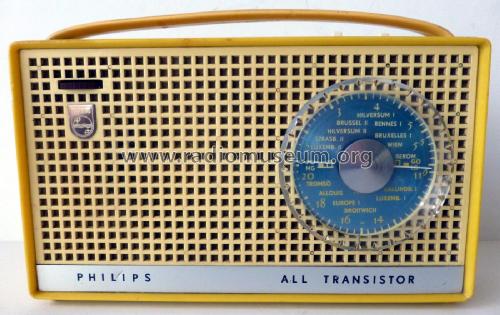

Notes Various colours available. The 00E version has a yellow case and a white front.
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by Jos van den Broek. See "Data change" for further contributors.
