For model L4X60BT, Philips Belgium (Belgien):

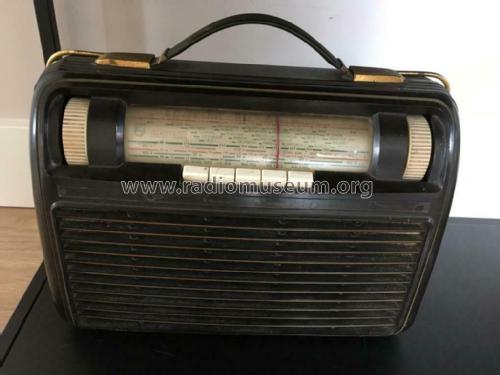

Picture from auction site Marktplaats (seller Sjoerd).

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: DK96 DF96 DF96
Semiconductors (the count is only for transistors) 3: OC71 OC72 OC72 OA85
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Dry Batteries / 6 & 45 or 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: L4X60BT - Philips Belgium Belgien
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 344 x 235 x 140 mm / 13.5 x 9.3 x 5.5 inch

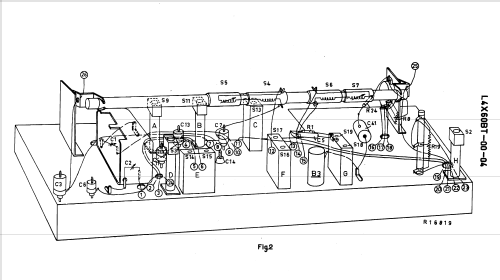

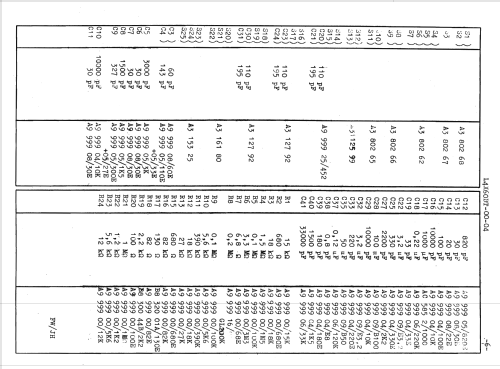

Mentioned in -- Original-techn. papers.

Model page created by Gidi Verheijen. See "Data change" for further contributors.
