• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1956/1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20889

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 ECH81 PL82 ECC82 PL81 PY81 DY86 PCF80 PCF80 PCF80 PL82 PY82 PY82 MW53-20

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

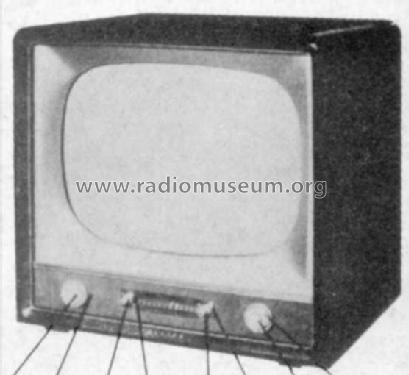

• Model: Leonardo 21TD140A - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 600 x 505 mm / 24.8 x 23.6 x 19.9 inch

• Notes

• VHF-Band I & III.

  Anschluss für Kabelfernbedienung KR 35753.

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Price in first year of sale
• 1,158.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Mentioned in
• Funk-Technik (FT) (5/1956, S. 119 - 121 / Schaltungsanalyse)
