LS462AB

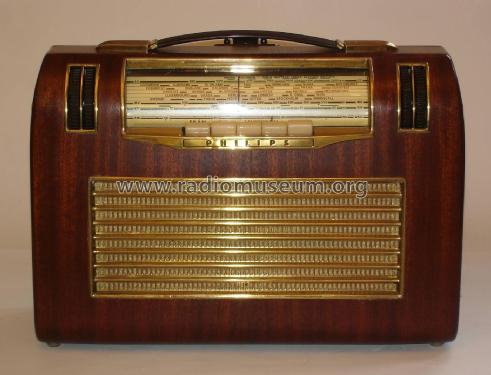

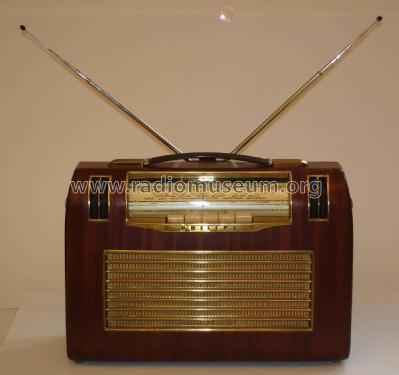

LS462AB; Philips, Svenska AB, (ID = 459733) Radio LS462AB; Philips, Svenska AB, (ID = 459735) Radio

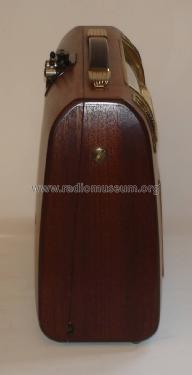

LS462AB; Philips, Svenska AB, (ID = 459734) Radio
Use red slider bar for more.
LS462AB; Philips, Svenska AB, (ID = 459733) Radio
Philips, Svenska AB,: LS462AB [Radio] ID = 459733 933x643
Select picture or schematic to display from thumbnails on the right and click for download.
For model LS462AB, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: DC90 DF96 DK96 DF96 DF96 DAF96 DL94
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 145; 220 / 90 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: LS462AB - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 230 x 120 mm / 12.6 x 9.1 x 4.7 inch
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Arto Haapakoski. See "Data change" for further contributors.
