• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202528

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• DF91 DK92 DF91 DAF91 DL94

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage

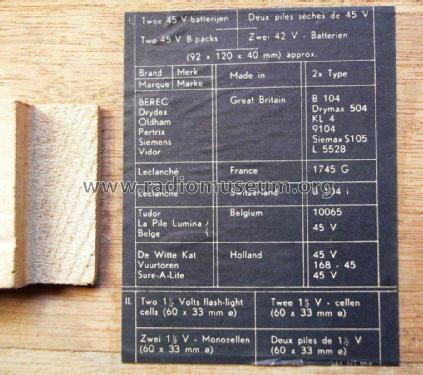

• Line / Batteries (any type) / AC 110; 125; 220 / 2 x 1,5 & 2 x 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: LX422AB /29 /49 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 280 x 155 mm / 11.4 x 11 x 6.1 inch

• Notes

• Gewicht inkl. Batterien.

  Ausführung /29 in blau, /49 in braun.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
