• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 79248

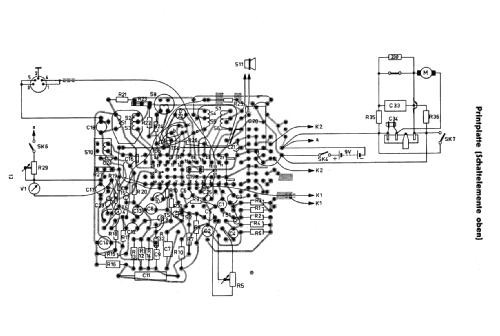

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC75 OC75 OC75 OC75 OC72 OC72 OA91

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

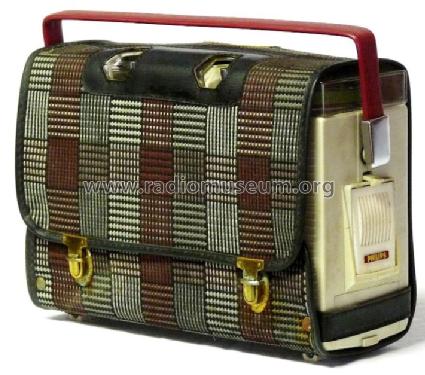

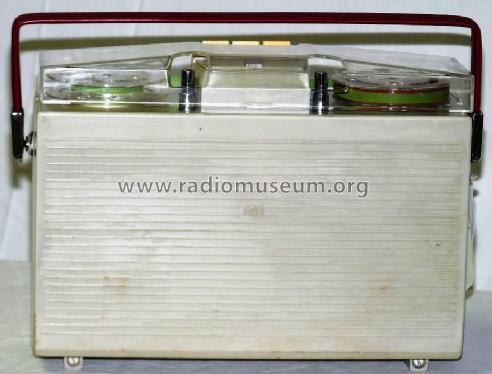

• Model: Maestro 10 EL3585 /30 - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 95 x 190 mm / 10.4 x 3.7 x 7.5 inch

• Notes

• Batterie-Tobandgerät. Bandgeschw. 4,75 cm/sec, max. Spulengröße 7,5cm,

  Separates Netzteil Philips EL3667
  Mikrofontype: EV 7016/20

  Paralleltype zum Horny WM4100BT.

  Siehe Philips EL3585 /00 für eine Übersicht der Geräte dieses Types und weiterführende Informationen.

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Price in first year of sale
• 2,150.00 ATS

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
