Marathon 23TA410A /30

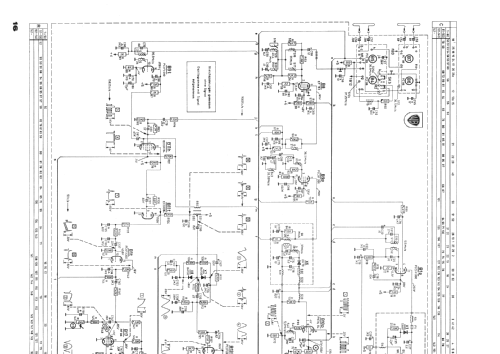

Marathon 23TA410A /30; Philips - Österreich (ID = 271101) Television

Marathon 23TA410A /30; Philips - Österreich (ID = 271102) Television

Marathon 23TA410A /30; Philips - Österreich (ID = 271104) Television
Marathon 23TA410A /30; Philips - Österreich (ID = 153958) Television
Use red slider bar for more.
Marathon 23TA410A /30; Philips - Österreich (ID = 153958) Television

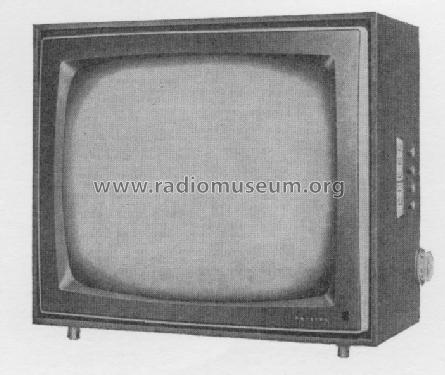

Philips - Österreich: Marathon 23TA410A /30 [Television] ID = 153958 704x592
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marathon 23TA410A /30, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1965 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PC86 PC88 PCC189 PCF86 EF183 PCF200 PCL84 PCF200 PCL85 PCL86 ECH84 PF86 PCL85 PCF802 PL500 PY88 DY87 A59-11W
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 190-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Marathon 23TA410A /30 - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 520 x 350 mm / 24 x 20.5 x 13.8 inch
Notes

Fernsehband VHF (I+III), UHF (IV/V). 59-cm-Rechteckbildröhre.

Paralleltype zum Horny W59T014A/30.

Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
