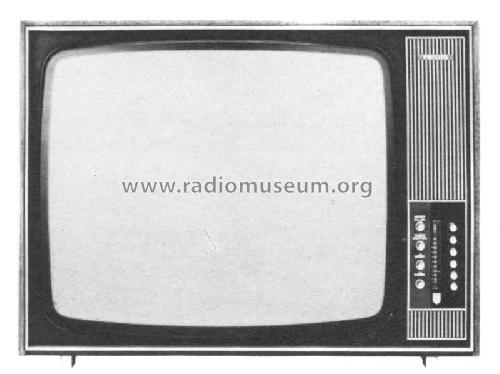

Marathon 24 Exclusiv A24T683 /00 /05 Ch= F6

Philips - Österreich

  • Year
  • 1969
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 111953

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • 16
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Marathon 24 Exclusiv A24T683 /00 /05 Ch= F6 - Philips - Österreich
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 655 x 485 x 265 mm / 25.8 x 19.1 x 10.4 inch
  • Notes
  • Empfangsbereich VHF und UHF.

    Zwei Ausführungen:
    /00 = Holz, dunkel, Hochglanz;
    /05 = Holz, Nußbaum - hellmatt.

  • Net weight (2.2 lb = 1 kg)
  • 25 kg / 55 lb 1.1 oz (55.066 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
