Mariza BCH373A

Mariza BCH373A; Philips - Schweiz (ID = 1892685) Radio

Mariza BCH373A; Philips - Schweiz (ID = 1892686) Radio

Mariza BCH373A; Philips - Schweiz (ID = 19524) Radio

Mariza BCH373A; Philips - Schweiz (ID = 19525) Radio

Mariza BCH373A; Philips - Schweiz (ID = 1892687) Radio

Mariza BCH373A; Philips - Schweiz (ID = 1892688) Radio

Mariza BCH373A; Philips - Schweiz (ID = 1892689) Radio

Mariza BCH373A; Philips - Schweiz (ID = 1892690) Radio

Mariza BCH373A; Philips - Schweiz (ID = 1892691) Radio

Mariza BCH373A; Philips - Schweiz (ID = 1892692) Radio
Mariza BCH373A; Philips - Schweiz (ID = 724652) Radio Mariza BCH373A; Philips - Schweiz (ID = 724658) Radio
Mariza BCH373A; Philips - Schweiz (ID = 724657) Radio Mariza BCH373A; Philips - Schweiz (ID = 2221) Radio
Mariza BCH373A; Philips - Schweiz (ID = 724654) Radio Mariza BCH373A; Philips - Schweiz (ID = 837986) Radio
Mariza BCH373A; Philips - Schweiz (ID = 997435) Radio
Use red slider bar for more.

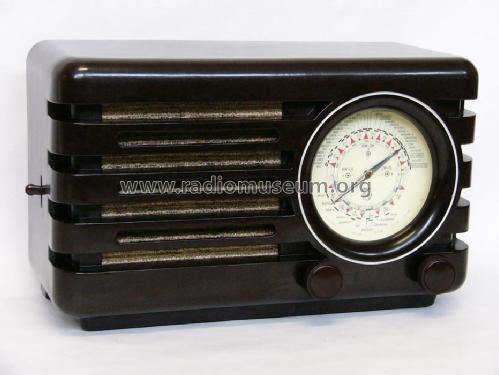

Mariza BCH373A; Philips - Schweiz (ID = 724652) Radio
Philips - Schweiz: Mariza BCH373A [Radio] ID = 724652 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mariza BCH373A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1947–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 125-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Mariza BCH373A - Philips - Schweiz
Material Bakelite case
Dimensions (WHD) 390 x 240 x 160 mm / 15.4 x 9.4 x 6.3 inch
Price in first year of sale 395.00 SFr
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Philips - Schweiz
Here you find 289 models, 204 with images and 207 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips - Schweiz: Mariza BCH373A
Threads: 1 | Posts: 1
Hits: 1618     Replies: 0
philips: BCH373A; Mariza gleich BX373A
Herbert Odermatt † 26.Nov.05
07.Jun.04
  1

Der Philips BCH373A entspricht dem BX373A. Beide mit Bakelitgehäuse.

H. Odermatt
