• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72957

Click on the schematic thumbnail to request the schematic as a free document.

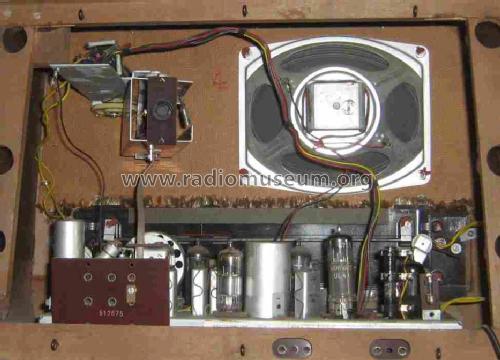

• Number of Tubes
• 7

• Valves / Tubes
• UC92 UCH81 UF85 UABC80 UM4 UL41 UY41

• Main principle
• ZF/IF 458,5/10700 kHz; 1 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Matinée BA533U - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 370 x 250 mm / 18.5 x 14.6 x 9.8 inch

• Notes

• Parallelgerät zum Hornyphon Lord W563U.

• External source of data
• Original Service-Anleitung

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
