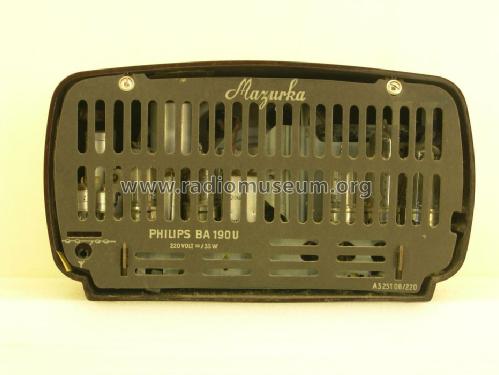

Mazurka BA190U

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1949–1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10111

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Mazurka BA190U - Philips - Österreich

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 150 x 110 mm / 10.6 x 5.9 x 4.3 inch

• Notes

• Parallelgerät zum Hornyphon Page W150U
  Induktive Abstimmung.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 695.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• RADIOBOTE, Österr. (Heft 60/2015, S.7 ff, Beschreibung und Reparatur)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
