Miniphone 3 H3I91A

Miniphone 3 H3I91A; Philips Italy; (ID = 494704) Radio Miniphone 3 H3I91A; Philips Italy; (ID = 494707) Radio
Miniphone 3 H3I91A; Philips Italy; (ID = 494706) Radio Miniphone 3 H3I91A; Philips Italy; (ID = 494705) Radio
Miniphone 3 H3I91A; Philips Italy; (ID = 494708) Radio Miniphone 3 H3I91A; Philips Italy; (ID = 494709) Radio
Miniphone 3 H3I91A; Philips Italy; (ID = 494710) Radio
Use red slider bar for more.

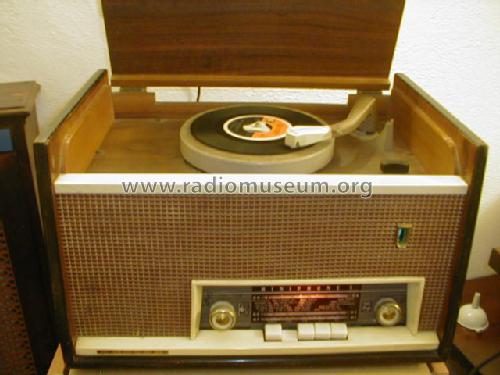

Miniphone 3 H3I91A; Philips Italy; (ID = 494704) Radio
Philips Italy;: Miniphone 3 H3I91A [Radio] ID = 494704 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Miniphone 3 H3I91A, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UCH81 UF89 UABC80 DM71 UL84 UY85
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Miniphone 3 H3I91A - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 300 x 320 mm / 18.5 x 11.8 x 12.6 inch
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Claudio Romanato. See "Data change" for further contributors.
