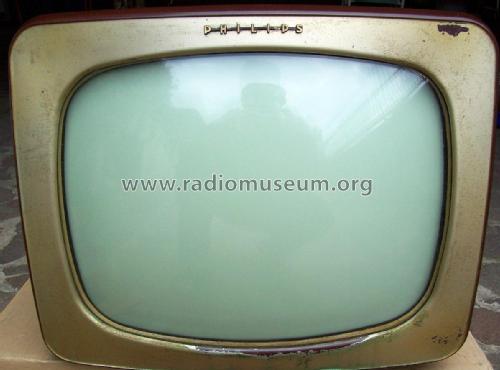

Monza 17TI200U /00; Philips Italy; (ID = 1838669) Television
Philips Italy;: Monza 17TI200U /00 [Television] ID = 1838669 1196x886
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monza 17TI200U /00, Philips Italy; Milano (MI):
17TI200U

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1960 ? Category: Television Receiver (TV) or Monitor

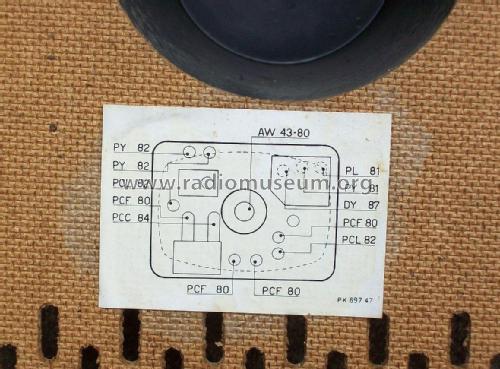

Valves / Tubes 13: PCC84 PCF80 PCF80 PCF80 PCF80 PCL82 DY87 PCL82 PL81 PY81 PY82 PY82 AW43-80
Main principle Superheterodyne (common); ZF/IF 45900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Monza 17TI200U /00 - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 370 x 420 mm / 17.7 x 14.6 x 16.5 inch
Notes

Banda di ricezione VHF, predisposto per tuner UHF.
Possibilità di essere alimentato anche in Corrente Continua.

Altoparlante tipo AD3500  5ohm 3w

Gruppo VHF tipo PK 952 03

Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Mentioned in Video libro ediz. 5 1961
Literature/Schematics (1) Schemario "Il Rostro" n° X

Model page created by Giuseppe Feniello. See "Data change" for further contributors.
