"Multi-Inductance" 536A

'Multi-Inductance' 536A; Philips - Schweiz (ID = 5205) Radio

'Multi-Inductance' 536A; Philips - Schweiz (ID = 19192) Radio

'Multi-Inductance' 536A; Philips - Schweiz (ID = 19193) Radio
'Multi-Inductance' 536A; Philips - Schweiz (ID = 2189) Radio 'Multi-Inductance' 536A; Philips - Schweiz (ID = 401141) Radio
'Multi-Inductance' 536A; Philips - Schweiz (ID = 429688) Radio 'Multi-Inductance' 536A; Philips - Schweiz (ID = 401144) Radio
Use red slider bar for more.
'Multi-Inductance' 536A; Philips - Schweiz (ID = 2189) Radio
Philips - Schweiz: "Multi-Inductance" 536A [Radio] ID = 2189 525x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 'Multi-Inductance' 536A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF3 AK2 AF3 ABC1 AL2 AZ1
Main principle Superhet with RF-stage; ZF/IF 115 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: "Multi-Inductance" 536A - Philips - Schweiz
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 460 x 320 mm / 19.3 x 18.1 x 12.6 inch
Notes

Das Philips-Modell Multi-Inductance 536A hat variable Bandbreite und Feldstärke-Anzeige mit einem Transductor (Saturable-core reactor). Siehe Ausführungen über das Prinzip, Kapitel 4.

Lautsprecher Type 2383 mit 10 Ohm.

Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Price in first year of sale 550.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

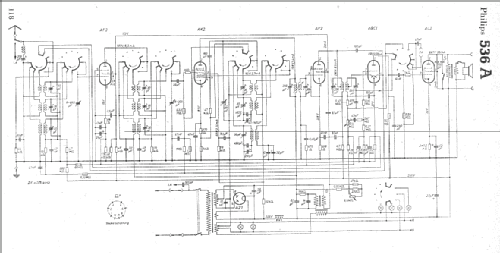

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Mentioned in Les Radio PHILIPS de collection
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Philips - Schweiz
Here you find 288 models, 209 with images and 212 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
