• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1954/1955

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 19758

• • Brand: Deutsche Philips-Ges.

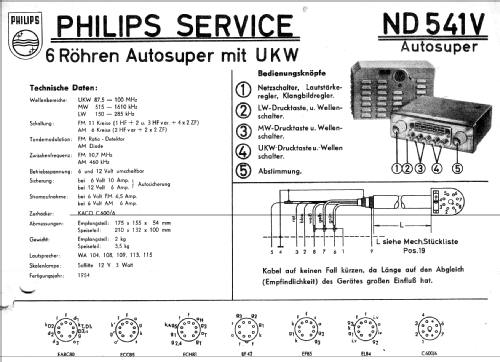

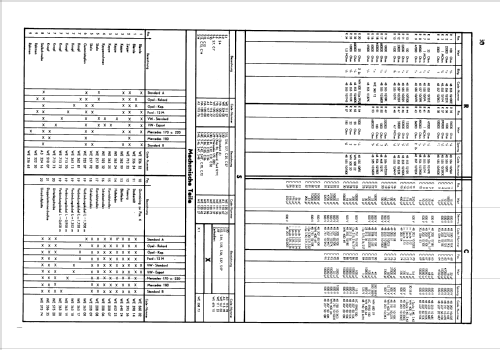

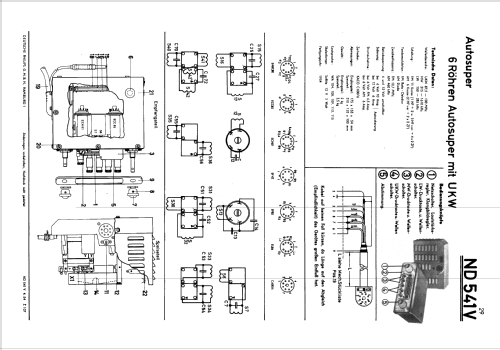

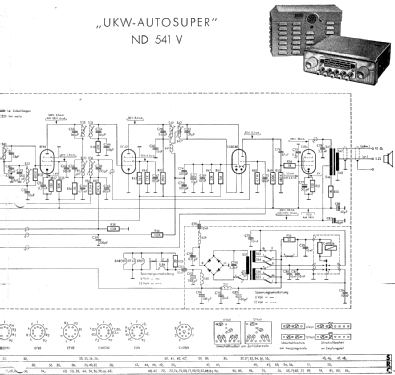

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF85 EF42 EABC80 EL84

• Number of Transistors

• Semiconductors
• C600/6 B250C90

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

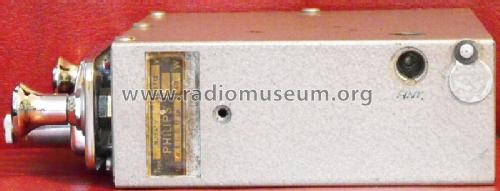

• Model: ND541V - Philips Radios - Deutschland

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 175 x 54 x 155 mm / 6.9 x 2.1 x 6.1 inch

• Notes

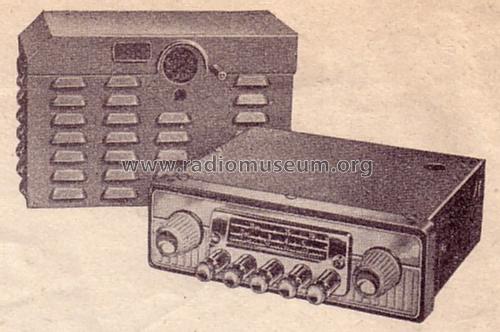

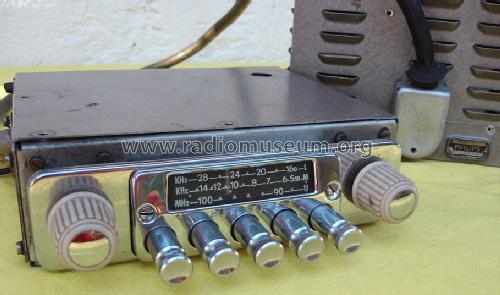

• Empfangsteil mit 5 Drucktasten: 1x LW, 2x MW, 2x UKW.

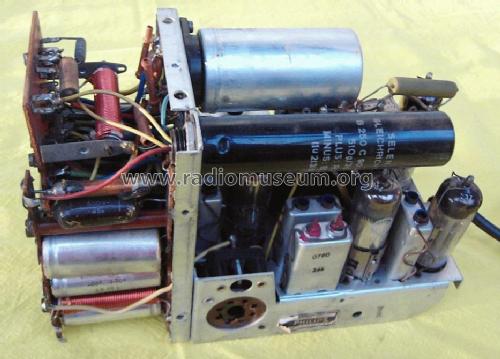

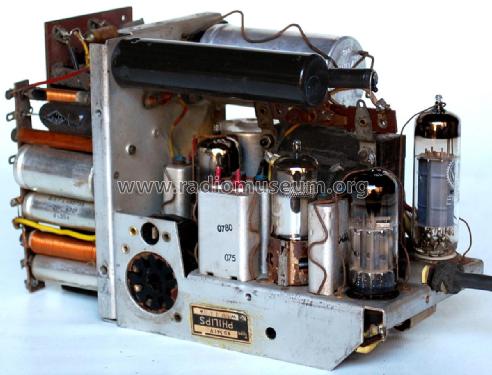

  Der Zusatzkasten enthält den ZF-Verstärker mit AM/FM Demodulator, die Endstufe und die Stromversorgung mit Zerhacker Kaco C600/6;
  Selen Gleichrichter: B250C90 (Säulenform mit Schraub-Befestigung).

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 348.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55
