NG-4506

NG-4506; Philips Argentina, (ID = 717177) R-Player

NG-4506; Philips Argentina, (ID = 717178) R-Player

NG-4506; Philips Argentina, (ID = 824918) R-Player

NG-4506; Philips Argentina, (ID = 824919) R-Player

NG-4506; Philips Argentina, (ID = 824920) R-Player
NG-4506; Philips Argentina, (ID = 717062) R-Player
Use red slider bar for more.
NG-4506; Philips Argentina, (ID = 717062) R-Player
Philips Argentina,: NG-4506 [R-Player] ID = 717062 519x539
Select picture or schematic to display from thumbnails on the right and click for download.
For model NG-4506, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires:

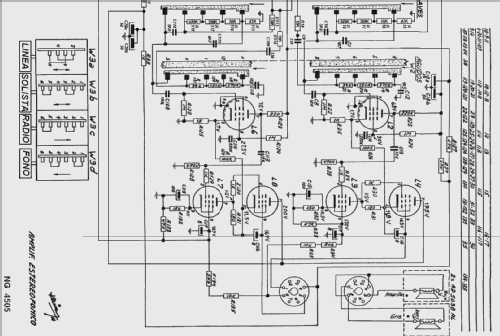

Image from Philips Service Manual 1966

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1960 Category: Sound/Video Recorder and/or Player
Valves / Tubes 10: ECC82 or 12AU7 EF89 EL86 EL86 ECC82 or 12AU7 EF89 EL86 EL86 EZ81 EZ81
Main principle Audio-Amplification; 6 AF stage(s)
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 12 W (unknown quality)
from Radiomuseum.org Model: NG-4506 - Philips Argentina, FAPESA,
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes Amplificador de audio estéreo con un parlante por canal. Consumo 135 W.
Potencia de salida 2 x 6 W a 1% de distorsión.
2 x 8 W potencia maxima.
Cambiador automático AL1021, con cápsula AG3301.
El circuito eléctrico es idéntico al modelo NG4505, salvo que este último carece del cambiador automático y los parlantes.
No tiene entrada de línea de audio, solo entrada mono de radio.
