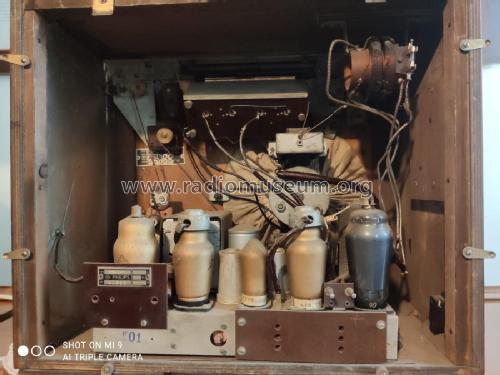

Octode Super 626HU-17; Philips Radio A/S; K (ID = 2636936) Radio

Octode Super 626HU-17; Philips Radio A/S; K (ID = 380584) Radio

Octode Super 626HU-17; Philips Radio A/S; K (ID = 380586) Radio

Octode Super 626HU-17; Philips Radio A/S; K (ID = 380589) Radio

Octode Super 626HU-17; Philips Radio A/S; K (ID = 380721) Radio

Octode Super 626HU-17; Philips Radio A/S; K (ID = 380722) Radio

Octode Super 626HU-17; Philips Radio A/S; K (ID = 380723) Radio

Use red slider bar for more.

Philips Radio A/S; K: Octode Super 626HU-17 [Radio] ID = 2636934 1400x1050

Select picture or schematic to display from thumbnails on the right and click for download.

For model Octode Super 626HU-17, Philips Radio A/S; København

Country:

Denmark

Manufacturer / Brand:

Philips Radio A/S; København

Year: 1935 ?

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

6: CK1 CF2 CB2 CF1 CL2 CY1 EUVI

Main principle	Superheterodyne (common); ZF/IF 115 kHz; 2 AF stage(s)
Tuned circuits	7 AM circuit(s)
Wave bands	Broadcast (MW) and Long Wave.
Details
Power type and voltage	AC/DC-set / 200-250 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch
Power out	3 W (unknown quality)
from Radiomuseum.org	Model: Octode Super 626HU-17 - Philips Radio A/S; København
Material	Wooden case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	440 x 390 x 250 mm / 17.3 x 15.4 x 9.8 inch
Notes	Drehspulinstrument als Abstimmanzeige in der Skala!
Net weight (2.2 lb = 1 kg)	12.3 kg / 27 lb 1.5 oz (27.093 lb)

Model page created by Dietrich Ehrhold. See "Data change" for further contributors.
