• Year
  • 1952 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118115

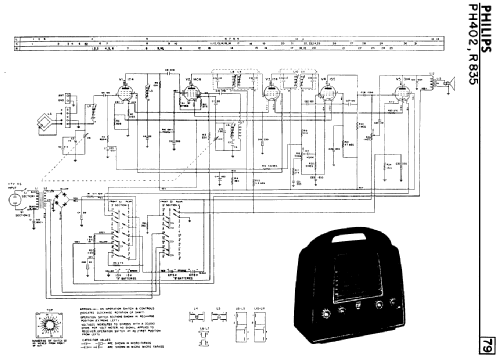

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / Either 2 x 1.5 & 67.5 or AC 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: PH402 - Philips Canada
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • The Canadian Philips model PH402 is a 5-tube portable radio that can be operated from AC mains or internal dry batteries.

  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
