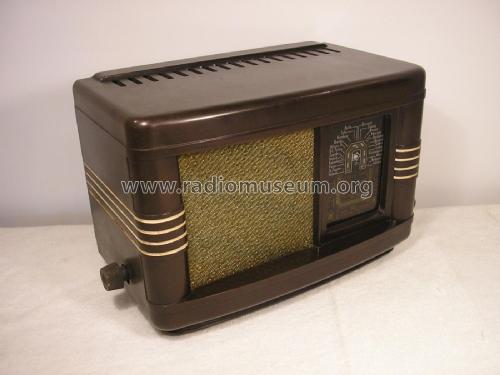

Philetta 208U-08 Gehäuse mit 4 horizontalen Streifen

Philetta 208U-08; Philips; Eindhoven (ID = 2009922) Radio

Philetta 208U-08; Philips; Eindhoven (ID = 2009923) Radio
Philetta 208U-08; Philips; Eindhoven (ID = 2372796) Radio Philetta 208U-08; Philips; Eindhoven (ID = 2373085) Radio
Philetta 208U-08; Philips; Eindhoven (ID = 2009924) Radio
Use red slider bar for more.

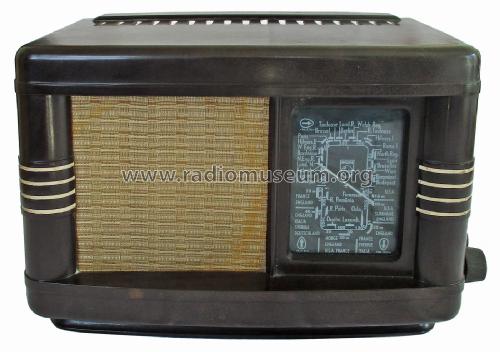

Philetta 208U-08; Philips; Eindhoven (ID = 2372796) Radio
Philips; Eindhoven: Philetta 208U-08 [Radio] ID = 2372796 1400x987
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philetta 208U-08 Gehäuse mit 4 horizontalen Streifen, Philips; Eindhoven (tubes international!); Miniwatt:
Sammlung: Rudi Korterink (NL)

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1945–1947 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Philetta 208U-08 [Gehäuse mit 4 horizontalen Streifen] - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 280 x 160 x 130 mm / 11 x 6.3 x 5.1 inch
Notes

Siehe auch die Ausführung 208U-08 mit einem Gehäuse mit 2 horizontalen Streifen.

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Price in first year of sale 135.00 Hfl
Source of data -- Original-techn. papers.
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman

Model page created by Gidi Verheijen. See "Data change" for further contributors.
