Philetta 3 B2I90A

Philetta 3 B2I90A; Philips Italy; (ID = 620714) Radio

Philetta 3 B2I90A; Philips Italy; (ID = 620717) Radio

Philetta 3 B2I90A; Philips Italy; (ID = 620706) Radio

Philetta 3 B2I90A; Philips Italy; (ID = 620708) Radio

Philetta 3 B2I90A; Philips Italy; (ID = 620711) Radio

Philetta 3 B2I90A; Philips Italy; (ID = 1003993) Radio
Philetta 3 B2I90A; Philips Italy; (ID = 963440) Radio Philetta 3 B2I90A; Philips Italy; (ID = 963442) Radio
Philetta 3 B2I90A; Philips Italy; (ID = 963443) Radio Philetta 3 B2I90A; Philips Italy; (ID = 247590) Radio
Philetta 3 B2I90A; Philips Italy; (ID = 963441) Radio Philetta 3 B2I90A; Philips Italy; (ID = 963444) Radio
Philetta 3 B2I90A; Philips Italy; (ID = 963445) Radio Philetta 3 B2I90A; Philips Italy; (ID = 1397151) Radio
Philetta 3 B2I90A; Philips Italy; (ID = 1397152) Radio Philetta 3 B2I90A; Philips Italy; (ID = 1397153) Radio
Use red slider bar for more.
Philetta 3 B2I90A; Philips Italy; (ID = 963440) Radio
Philips Italy;: Philetta 3 B2I90A [Radio] ID = 963440 933x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philetta 3 B2I90A, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL84 UY85
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Philetta 3 B2I90A - Philips Italy; Milano MI
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 280 x 170 x 160 mm / 11 x 6.7 x 6.3 inch
Notes

Serie ANIE. Diverse varianti di colore.

Source of data Guida Pratica Antique Radio IV (2001)

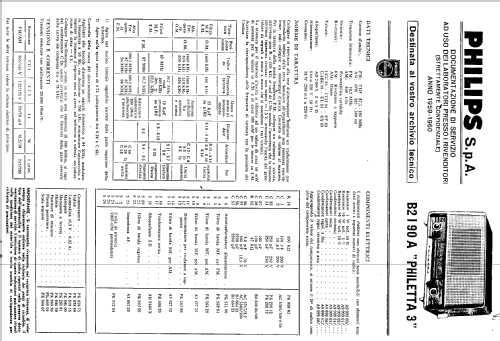

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Rino Ferro † 2008. See "Data change" for further contributors.
