Philetta B2D93U/01

Philetta B2D93U/01; Philips Radios - (ID = 1294770) Radio Philetta B2D93U/01; Philips Radios - (ID = 35541) Radio
Philetta B2D93U/01; Philips Radios - (ID = 35540) Radio Philetta B2D93U/01; Philips Radios - (ID = 1294773) Radio
Philetta B2D93U/01; Philips Radios - (ID = 35542) Radio Philetta B2D93U/01; Philips Radios - (ID = 35536) Radio
Philetta B2D93U/01; Philips Radios - (ID = 1294776) Radio Philetta B2D93U/01; Philips Radios - (ID = 1851876) Radio
Philetta B2D93U/01; Philips Radios - (ID = 1851877) Radio Philetta B2D93U/01; Philips Radios - (ID = 1851878) Radio
Use red slider bar for more.

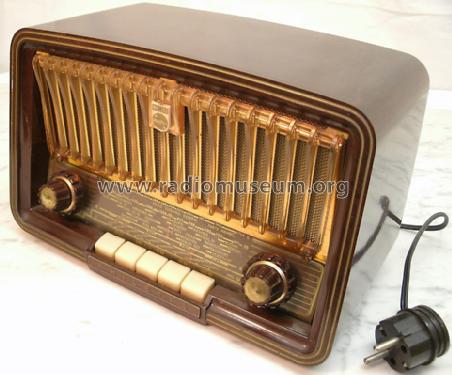

Philetta B2D93U/01; Philips Radios - (ID = 1294770) Radio
Philips Radios -: Philetta B2D93U/01 [Radio] ID = 1294770 933x774
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philetta B2D93U/01, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL84 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Philetta B2D93U/01 - Philips Radios - Deutschland
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 292 x 185 x 165 mm / 11.5 x 7.3 x 6.5 inch
Notes

Siehe auch Philetta B2D93U (ähnlich diesem Modell)



Collectors' prices

Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
