Philitina 66RL301 /00F /00R / 00S

Philitina 66RL301; Philips - Österreich (ID = 127382) Radio

Philitina 66RL301; Philips - Österreich (ID = 127383) Radio

Philitina 66RL301; Philips - Österreich (ID = 645906) Radio
Philitina 66RL301; Philips - Österreich (ID = 1523989) Radio Philitina 66RL301; Philips - Österreich (ID = 111901) Radio
Philitina 66RL301; Philips - Österreich (ID = 647110) Radio Philitina 66RL301; Philips - Österreich (ID = 647111) Radio
Philitina 66RL301; Philips - Österreich (ID = 647114) Radio Philitina 66RL301; Philips - Österreich (ID = 647115) Radio

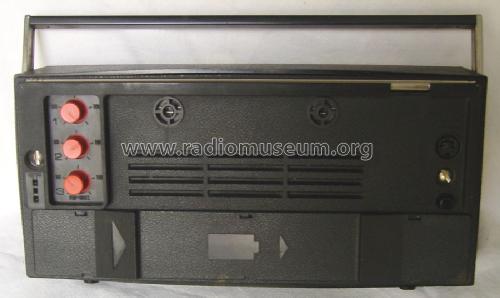

Philitina 66RL301; Philips - Österreich (ID = 647119) Radio Philitina 66RL301; Philips - Österreich (ID = 1523990) Radio
Use red slider bar for more.
Philitina 66RL301; Philips - Österreich (ID = 1523989) Radio
Philips - Österreich: Philitina 66RL301 [Radio] ID = 1523989 900x706
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philitina 66RL301 /00F /00R / 00S, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF200 BF195 BF197 BF197 BC148 BC148 AC188 AC187 AC188 BC149 BC159
Main principle Super-Heterodyne (Super in general); ZF/IF 10700 kHz; 4 AF stage(s)
Tuned circuits 8 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: Philitina 66RL301 [/00F /00R / 00S] - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 283 x 140 x 70 mm / 11.1 x 5.5 x 2.8 inch
Notes 3 Ausführungen:
../00L = grün
../00R = schwarz
../00S = weiß
Only FM, with 3 fix stations. Ext. power special jack. Adaptor typ: BT1A, 6V/0,2A.
Paralleltype zum Horny DX6301.
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
