Pikku Matti BSF230U

Pikku Matti BSF230U; Philips Finland - (ID = 2026388) Radio Pikku Matti BSF230U; Philips Finland - (ID = 2026390) Radio
Pikku Matti BSF230U; Philips Finland - (ID = 2026391) Radio Pikku Matti BSF230U; Philips Finland - (ID = 2026392) Radio

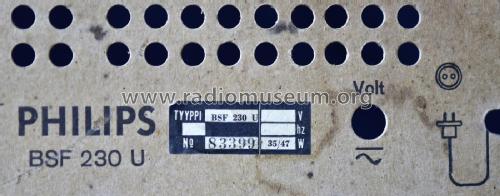

Pikku Matti BSF230U; Philips Finland - (ID = 2026397) Radio Pikku Matti BSF230U; Philips Finland - (ID = 2026398) Radio
Pikku Matti BSF230U; Philips Finland - (ID = 2029196) Radio
Use red slider bar for more.

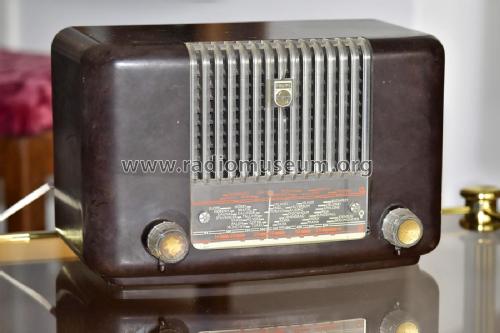

Pikku Matti BSF230U; Philips Finland - (ID = 2026388) Radio
Philips Finland -: Pikku Matti BSF230U [Radio] ID = 2026388 1400x934
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pikku Matti BSF230U, Philips Finland - see also Fenno and TeRate:
Finnische 'Philetta'. Version ohne UKW in der Gehäusegestaltung der Philetta-Familie des Jahrgangs 1953/54, Vrgl. auch mit Philetta 54K BD233U-K.

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1952–1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Pikku Matti BSF230U - Philips Finland - see also
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 285 x 180 x 145 mm / 11.2 x 7.1 x 5.7 inch
Notes Wave bands:
16,5 - 50,5m
185 - 580m
690 - 2000m

Model page created by Timo Rantasaari. See "Data change" for further contributors.
